THE WORLD'S FIRST SUBMERSIBLE AMATEUR HAND-HELD
Protected against water ingress by a wide array of rubber gaskets and other weatherproofing techniques, the VX-7R is rated for 30 minutes of submersion at a depth of 3 feet (JIS-7), plus a tough magnesium body with rubber bumper pads, making it ideal for outdoor use. Plus you get Dual Receive, 50/144/430 MHz operation plus wide-band receive coverage, a full color status indicator Strobe, and an "Internet" key for quick access to the exciting new WIRES™ repeater-internet linking system.
THE WORLD'S FIRST SUBMERSIBLE AMATEUR HAND-HELD
Protected against water ingress by a wide array of rubber gaskets and other weatherproofing techniques, the VX-7R is rated for 30 minutes of submersion at a depth of 3 feet (JIS-7), plus a tough magnesium body with rubber bumper pads, making it ideal for outdoor use. Plus you get Dual Receive, 50/144/430 MHz operation plus wide-band receive coverage, a full color status indicator Strobe, and an "Internet" key for quick access to the exciting new WIRES™ repeater-internet linking system.
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

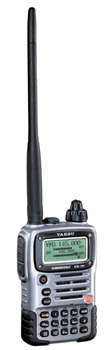

VX-7R
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating
Band
|
Battery
Life (Approx.)
|
|
|
FNB-80LI
|
FBA-23
|
|
|
50 MHz *1 |
6.5
hours
|
7.0
hours
|
| 144 MHz *1 |
6.0
hours
|
6.5
hours
|
| 430 MHz *1 |
5.5
hours
|
6.0
hours
|
| Other Band *2 |
15
hours
|
15
hours
|
THE BEST TONE SIGNALING EVER
Ideal for operation on modern repeater systems, the VX-7R
includes built-in Encoder/Decoder circuits providing 50 CTCSS (Subaudible)
tones and 104 DCS (Digital Coded Squelch) codes. Adding to the
versatility is provision for using "mixed" tone/code
configurations (CTCSS for TX, DCS for RX, or vice-versa).
ARTS
(Auto-Range Transponding System)
Utilizing the DCS capability of the transceiver, the ARTSTM
feature provides audio and/or visual confirmation that another
ARTS-equipped station is within communication range. If you are
in search-and-rescue operation, and get out of range of the base
station, ARTS will warn the base operator to advise you to move
to a better location.
INTERNET
KEY FOR INSTANT ACCESS TO WIRES (Wide-coverage Internet Repeater
Enhancement System)
A unique feature of the VX-7R is the new "Internet"
key, prominently located in the bottom right-hand corner of the
keypad, providing easy access to the new WIRES™
Repeater-Internet-linking system. Pressing the Internet key
activates a single-tone DTMF burst at the beginning of each
transmission, as required for Internet linking access via a
WIRES - configured repeater system.
WIRES™ is an easy-to-install method of linking repeaters via
the Internet, for emergency networking, "sister city"
repeater communication, or just plain fun. Requiring only a 56K
dial-up service (not an expensive DSL or T1 line), WIRES™ can
link up to 10 repeaters (by prior arrangement), with a single
DTMF tone (at the start of each transmission) providing access
to the WIRES network.
While WIRES™ networks may be accessed using any manufacturer's
transceiver that is equipped with a DTMF keypad, the VX-7R's
Internet key provides automatic transmission of the required
DTMF burst, for easy access when seconds count.
THE
BEST TRAVELING COMPANION EVER
Whether you're walking around town, or walking down a mountain,
the VX-7R is equipped with the features and durability that you
need.
Emergency Strobe/Beep Feature
If you press and hold in the EMG(HM/RV) key for two seconds, the
VX-7R will be placed in the Emergency' mode, wherein (A) it will
automatically be set to the 430 MHz 'Home Channel, (B) a loud
Alarm' beep will be put out from the speaker, and (C) the front
panel Strobe will brightly flash in sequential colors. If you
press the PTT switch during Emergency operation, the Alarm will
be temporarily silenced, and you may now call a friend, family
member, or a rescuer on the UHF Home Channel.
Optional SU-1 Barometric Pressure Unit with Weather Forecast
Feature
The optional SU-1 Barometric Pressure Sensor Unit provides
indication of the current pressure, calibrated in either units
of inches or mm of mercury, hpa, or millibars. On a hike,
altitude (in feet or meters) can be deduced from a starting
pressure calculation, and a basic weather trend forecast will
also appear on the display! While the transceiver is turned off,
it can be set up to monitor and display the temperature (in °F
or °C), pressure, altitude, or any combination of these.
On/Off Timers
If you need to be sure to be on the air at an appointed time,
but don't want to waste battery power, use the VX-7R's On and
Off timers. Utilizing the microprocessor-based 24-hour clock,
the Timer will switch the radio on at the programmed time, and
just before switching off it will emit an alert beep, so you'll
be aware of the impending shut-down of the transceiver.
"Quick-Draw" Swivel-Mount Belt Clip
Rugged, yet easy to use, the Quick-Draw Belt Clip locks in place
from any angle, but the VX-7R can only be removed from an
inverted position, It will swivel as you walk without slipping
off your belt, so there's less chance of having your radio fall
off your belt than with simpler designs.
THE
MOST DAZZLING DISPLAY EVER
No Amateur hand-held transceiver has a display that even
compares to the VX-7R's 132 x 64 dot matrix display. Providing
clear, easy-to-read indication of both the Main and Sub band
frequencies, operating mode, and S-meters for both bands, the
VX-7R's display includes an unparalleled array of graphical and
pictorial tools that make operation a breeze.
Full Color Strobe LED
Among the more innovative features introduced in the VX-7R is
the full-color Strobe LED, which provides indication of a number
of transceiver status items using different colors. The Menu
allows you to custom-design a color that you will recognize for
indication of "Busy Channel" for the Main, Sub, and
"Both" receive channels, as well as "TX"
indicators for the Main and Sub bands. Different colors may be
selected for each of the above conditions, and a total of 256
color shades are available, for customizing the colors just the
way you like them.
24 Hour Clock
The VX-7R includes a built-in 24-hour clock, with calendar,
powered by a separate (rechargeable) Lithium-Ion battery that
will maintain clock data for up to two months without use of the
main transceiver battery power.
Change Icons and Fonts
During monoband operation, the huge size of the dot matrix
display allows the use of pictorial icons to depict a number of
band and operational status notations. You can substitute icons,
if you like, from a selection of alternative icons, or you can
use the icon editor feature to create your own icon or font.
Audio Wave Meter
During monoband operation, you can also choose to have the VX-7R
display a depiction of the incoming audio waveform, just below
the frequency display field.
Spectrum Scope Display
When you engage the Spectrum Scope, the display will indicate
relative signal strengths on adjacent channels (you may select
either ±5 or ±8 channels from the current frequency), allowing
you truly to keep an eye on the band.
Battery-Saving Illumination Control
The Omni-Glow™ display/key illumination may be configured in a
number of batterysaving ways. Both Brightness and Contrast are
adjustable. You can set the illumination to appear continuously,
or only for a few seconds after a key is pressed. You can even
turn the "Busy" Strobe off, for additional battery
conservation.
THE
MOST MEMORIES EVER
Sporting the most memory capability of any Amateur transceiver,
the VX-7R includes over 900 memory channels of one kind or
another, yet access is simple and intuitive, thanks to
8-character Alpha-Numeric labeling capability, so you¹ll never
miss any of the excitement stored inside! These memories
include.
450 "Main" Memories
Storing frequency, mode, and CTCSS/DCS data, the 450 Memory
Channels may be assigned into any of 9 Memory Groups, for easy
recall (up to 48 channels per group may be stored).
10 One-Touch (OTM) memories
Store your most-used frequencies in the quickaccess OTM bank!
40 Programmable Memory Scan (PMS)
Band-Limit Memories Use the PMS memories for setting upper and
lower scanning/operating limits in the Amateur bands.
12 Home Channel Memories
The "Home" channels may be set to a
"favorite" operating frequency, or a central operating
frequency that may be used as a starting point for operation.
The 430 MHz Home Channel is also used for the
"Emergency" beacon.
10 Weather Band Memories (U.S. Version)
Ideal for quick access to the Weather Band broadcasts, these
memories may be scanned in search of the loudest Weather station
in your area.
89 Shortwave Broadcast Station Memories
The most popular HF Shortwave Broadcast stations are pre-stored
at the factory, for instant selection of your favorite station
and program.
280 Marine Channels
The huge 280-channel Marine Bank allows full access to the
excitement of monitoring the world of Marine operation.
10 "Hyper" Memories
The Hyper memories may be used to store and recall a complete
set of transceiver configuration data, such as Dual Receive
status, Spectrum Scope configuration, scanning features, etc.
|
SPECIFICATIONS
|
|
| 0 | |
| GENERAL | 0 |
|
Frequency
Ranges:
|
|
|
MAIN
Rx:
|
0.5 - 1.8 MHz (BC Band) |
|
0
|
1.8 - 30 MHz (SW Band) |
|
0
|
30 - 59 MHz (50 MHz HAM: USA version) |
|
0
|
30 - 76 MHz (50 MHz HAM: EXP version) |
|
0
|
59 - 108 MHz (FM: USA version) |
|
0
|
76 - 108 MHz (FM: EXP version) |
|
0
|
108 - 137 MHz (Air Band) |
|
0
|
137 - 174 MHz (144 MHz HAM) |
|
0
|
174 - 222 MHz (VHF-TV) |
|
0
|
222 - 225 MHz (220 MHz HAM: USA version) |
|
0
|
225 - 420 MHz (ACT1: Action Band 1: USA version) |
|
0
|
222 - 420 MHz (ACT1: Action Band 1: EXP version) |
|
0
|
420 - 470 MHz (430 MHz HAM) |
|
0
|
470 - 729 MHz (UHF-TV: USA version) |
|
0
|
470 - 800 MHz (UHF-TV: EXP version) |
|
0
|
800 - 999 MHz (ACT2: Action Band 2, cellular Blocked) |
|
SUB
Rx:
|
50 - 54 MHz, 137 - 174 MHz, 420 - 470 MHz |
|
|
50 - 54 MHz (MAIN & SUB) |
|
0
|
144 - 146 MHz or 144 - 148 MHz (MAIN & SUB) |
|
0
|
222 - 225 MHz (MAIN, USA version) |
|
0
|
430 - 440 MHz or 430 - 450 MHz (MAIN & SUB) |
|
Channel
Steps :
|
5/9/10/12.5/15/20/25/50/100 kHz |
|
Frequency
Stability:
|
±5 ppm(-10° C to +50° C [-14 F to +122 F]) |
|
Repeater
Shift:
|
5/10/12.5/15/20/25 & 5 kHz |
|
Repeater
Shift:
|
±600 kHz (144 MHz), ±1.6 MHz (222 MHz/USA version), ±1.6/5.0/7.6 MHz (430 MHz) |
|
Emission
Type:
|
A3/F2/F3 |
|
Antenna
Impedance:
|
50 Ohms |
|
Supply
Voltage:
|
Nominal:
7.4 V DC, Negative Ground Operating: 6-16 V DC, Negative Ground (EXT DC jack) |
|
Current
Consumption:
|
200 mA (Mono Band Receive) |
|
0
|
(Approx.) 240 mA (Dual Band Receive) |
|
0
|
67 mA (Mono Band Receive, Standby, Saver Off) |
|
0
|
100 mA (Dual Band Receive, Standby, Saver Off) |
|
0
|
28 mA (Mono Band Receive, Standby, Saver On ìSave Ratio 1:5") |
|
0
|
34 mA (Dual Band Receive, Standby, Saver On ìSave Ratio 1:5") |
|
0
|
200 µA (Auto Power Off) |
|
0
|
1.6 A (50 MHz, 5 W Tx) |
|
0
|
1.7A (144 MHz, 5W Tx) |
|
0
|
1.0 A (220 MHz, 0.3 W Tx /USA version) |
|
0
|
1.9 A (430 MHz, 5W Tx) |
|
Operating
Temperature:
|
-4 F to +140 F (-20° C to +60° C) |
|
Case
Size (W x H x D):
|
2.4 x 3.5 x 1.1 inch (60 x 90 x 28.5 mm) w/o knob & antenna |
|
Weight
(Approx.):
|
9.2 oz (260 g) with FNB-80LI & antenna |
| 0 | |
| TRANSMITTER | 0 |
|
RF
Power Output:
|
5.0 W (@7.4 V & 13.8 V EXT DC IN) |
|
|
0.3W (@7.4 V & 13.8 V EXT DC IN, 222 MHz/USA version) |
|
|
1.0W (@7.4 V & 13.8 V EXT DC IN, 50 MHz AM) |
|
Modulation
Type:
|
F2, F3: Variable Reactance (MAIN & SUB) |
|
|
A3: Low Level Amplitude Modulation (MAIN, 50 MHz) |
|
Maximum
Deviation:
|
±5 kHz F2/F3 |
|
Spurious
Emission:
|
At least 60 dB down (@ Tx HI/L3) |
|
|
At least 50 dB down (@ Tx L2/L1) |
|
Microphone
Impedance:
|
2K 0hms |
| 0 | |
| RECEIVER | 0 |
|
Circuit
Type:
|
N-FM, AM: Double-Conversion Superheterodyne |
|
W-FM:
|
Triple-Conversion Superheterodyne |
|
IF:
|
|
|
MAIN
Rx:
|
1st: 47.25 MHz (N-FM, AM), 45.8 MHz (W-FM) |
|
|
2nd: 450 kHz (N-FM, AM), 10.7 MHz (W-FM) |
|
|
3rd: 1 MHz (W-FM) |
|
SUB
Rx:
|
1st : 46.35 MHz |
|
|
2nd: 450 kHz |
|
Sensitivity:
|
|
|
MAIN
Rx:
|
3.0 µV for 10 dB S/N (0.5-30 MHz, AM) |
|
|
0.5 µV (TYP) for 12 dB SINAD (30-50, N-FM) |
|
|
0.16 µV for 12 dB SINAD (50-54, N-FM) |
|
|
1.0 µV (TYP) for 12 dB SINAD (57-76, N-FM) |
|
|
1.0 µV (TYP) for 12 dB SINAD (76-108, W-FM) |
|
|
1.5 µV (TYP) for 10 dB SN (108-137, AM) |
|
|
0.2 µV for 12 dB SINAD (137-140, N-FM) |
|
|
0.16 µV for 12 dB SINAD (140-150, N-FM) |
|
|
0.2 µV for 12 dB SINAD (150-174, N-FM) |
|
|
0.3 µV for 12 dB SINAD (174-225, N-FM) |
|
|
0.5 µV for 12 dB SINAD (300-350, N-FM) |
|
|
0.2 µV for 12 dB SINAD (350-400, N-FM) |
|
|
0.18 µV for 12 dB SINAD (400-470, N-FM) |
|
|
0.35 µV for 12 dB SINAD (470-540, W-FM) |
|
|
3.0 µV (TYP) for 12 dB SINAD (540-800, W-FM) |
|
|
1.0 µV (TYP) for 12 dB SINAD (800-999, N-FM) |
|
|
(Cellular Blocked/USA version) |
|
SUB
Rx:
|
0.18 µV for 12 dB SINAD (50-54, N-FM) |
|
|
0.18 µV for 12 dB SINAD (137-174, N-FM) |
|
|
0.2 µV for 12 dB SINAD (420-470, N-FM) |
|
Selectivity:
|
12 kHz/25 kHz (-6dB/-60dB: N-FM, AM) |
|
|
200 kHz/300 kHz (-6dB/-20dB: W-FM) |
|
AF
Output:
|
200 mW @ 8 Ohms for 10 % THD (@ 7.4 V DC) |
|
|
400 mW @ 8 Ohms for 10 % THD (@ 13.8 V DC) |
| 0 | |
| Specifications are subject to change without notice, and are guaranteed within amateur bands only. | |
|
|
|
©
2002 Yaesu USA | Privacy
Policy
|
